Technical Requirements and Architecture

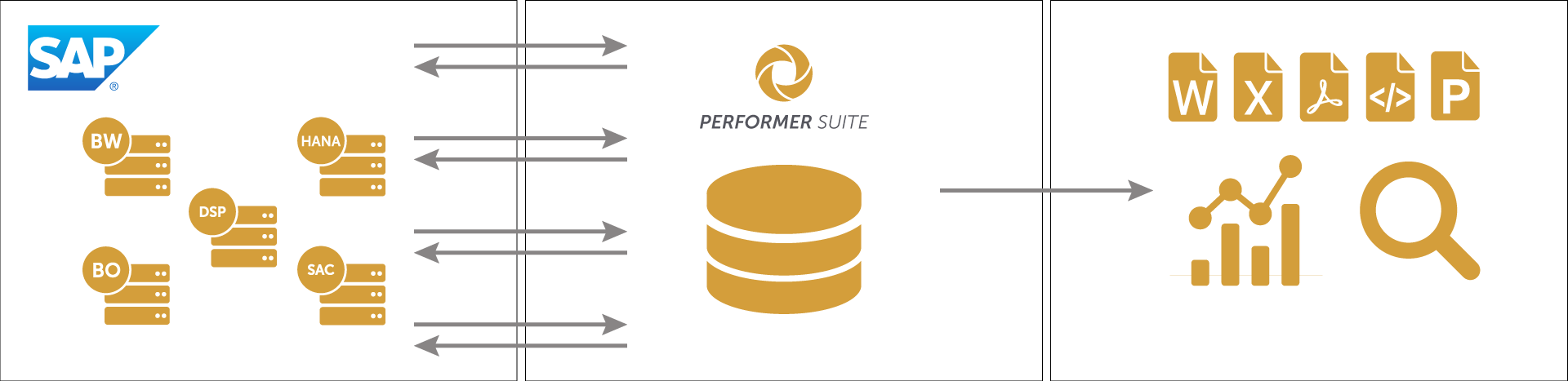

Architecture

• Performer Suite is a .NET-based application that is installed on Microsoft Windows.

• No administration rights are required and no entries are made in the Windows Registry.

• Despite a few custom function modules, which can be created automatically by the Performer Suite, no adaptions or installations are required in your SAP system.

• To save synchronized objects, data, and comments an SQLite-, SQL Server or Oracle database can be used.

• When conducting an analysis function or documentation, Performer Suite communicates via remote-enabled function modules (BW) or the RestFul interface (BO and HANA) with your SAP systems.

• The result is displayed in the form of an analysis or documentation (Output formats: Word, Excel, PPT, PDF, HTML).

Technical Requirements

The following minimum system requirements and installed software are required on the client system in order to use the products of the Performer Suite:

Screen resolutions (for Clients and AutomationTool)

• Recommended: 1980 x 1080, 1920 x 1200, and higher.

• Still working: 1680 x 1050, 1600 x 900, 1440 x 900, 1400 x 1050

• Severely limited (do not use): 1366 x 768, and lower.

Clients

• Disk space: ~2 GB

• 2 GHz CPU, 8 GB RAM

• Microsoft .NET Framework 4.8 or higher

• Open Office or Microsoft Office (Version must be >= 2002/2003 (with installed Compatibility Pack for Open XML formats))

• 64-bit: Windows: 11 / 10 / 7 / 8.1 / 8

• 64-bit: Windows Server: 2025 / 2022 / 2019 / 2016 / 2012 / 2012 R2 / 2008 R2

AutomationTool

• Disk space: ~1 GB

• 2 GHz CPU, 8 GB RAM

• Microsoft .NET Framework 4.8 or higher

• 64-bit: Windows: 11 / 10 / 7 / 8.1 / 8

• 64-bit: Windows Server: 2025 / 2022 / 2019 / 2016 / 2012 / 2012 R2 / 2008 R2

Database Server

• Disk space: ~5 GB

• vCPU and RAM: Depends strongly on your workload. Add more vCPU and RAM if you experience poor performance.

• SQL-Server usage: >= SQL Server 2005 (9.0)

• Oracle usage: >= Oracle 10g

• 64-bit: Windows Server: 2025 / 2022 / 2019 / 2016 / 2012 / 2012 R2 / 2008 R2
